how to create an analog clock using HTML, CSS, and JavaScript.

 How to create an analog clock using HTML, CSS, and JavaScript.


In this article, we will explore how to create an analog clock using HTML, CSS, and JavaScript. As a programmer, developer, or front-end enthusiast, this tutorial will provide you with a step-by-step guide on how to bring this classic timepiece to life on your web page. Additionally, we will make the source code available, so you can easily follow along and implement it in your own projects.




To begin, let's discuss the basic structure of our analog clock. We will use HTML to set up the skeleton of our clock, CSS to style and position its elements, and JavaScript to handle the clock's functionality.


First, we need to create the HTML structure. We will use a `<div>` container to hold the clock, and within it, we will have three separate elements: the hour hand, the minute hand, and the second hand. Each hand will be represented by a `<div>` element with a unique ID.


Moving on to CSS, we will style our clock to give it a classic analog look. We can customize its size, color, and other visual aspects to match our desired design. Additionally, we will position the hands at the center of the clock using the `transform-origin` property. This will allow us to rotate the hands later on.


Now comes the exciting part – implementing the clock's functionality using JavaScript. We will use the `setInterval` function to update the clock every second. Inside this function, we will calculate the current time using the `Date` object and then apply the corresponding rotation to each hand to reflect the time accurately.


To calculate the rotation, we need to consider the current hour, minute, and second. JavaScript provides methods to retrieve these values from the `Date` object. By calculating the degree of rotation for each hand, we can update their styles accordingly using the `transform` property.

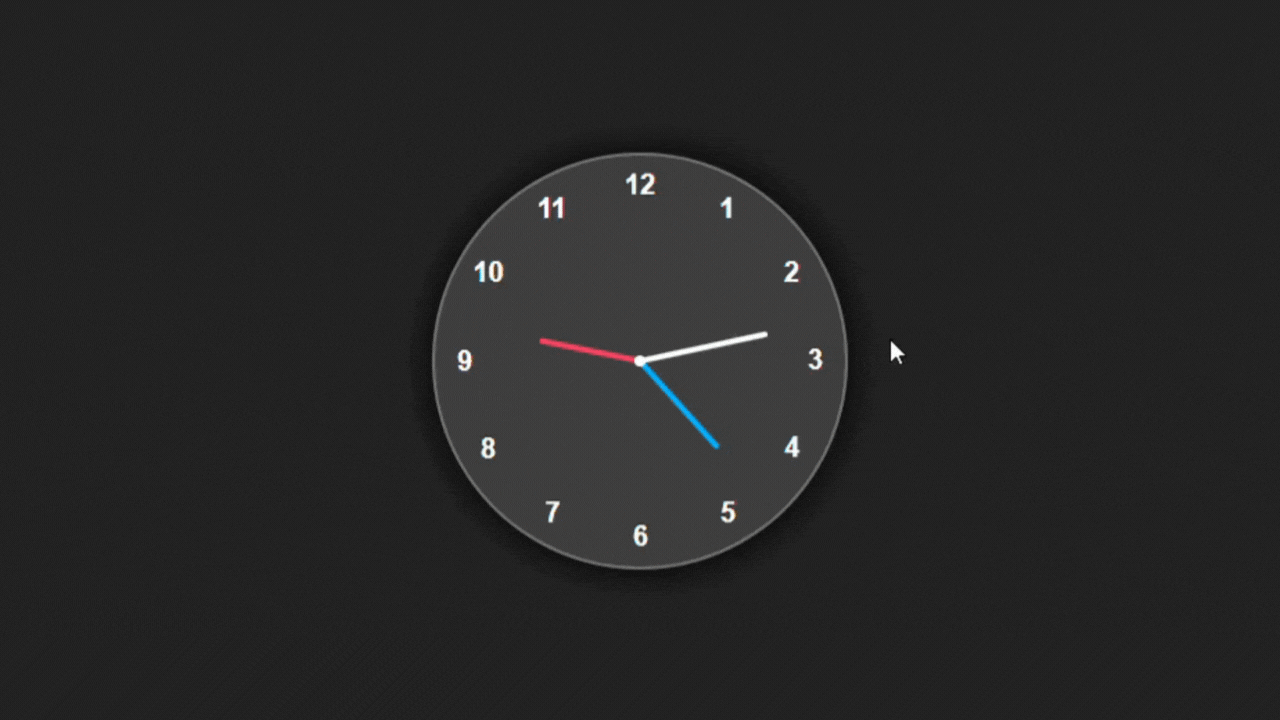

Once we have completed all the necessary steps, we can save our code and open the HTML file in a web browser. Voila! Our analog clock should be up and running, displaying the current time.


Now that you have successfully created your own analog clock, feel free to experiment and add additional features to make it even more unique. You could consider adding a ticking sound effect using HTML5 audio, implementing different clock styles, or even adding interactivity by allowing users to set the time manually.

HTML CODE



<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <link rel="stylesheet" href="style.css" />
    <title>Analog Clock</title>
  </head>

  <body>
    <div class="container">
      <div class="clock">
        <div style="--clr: #ff3d58; --h: 74px" id="hour" class="hand">
          <i></i>
        </div>
        <div style="--clr: #00a6ff; --h: 84px" id="min" class="hand">
          <i></i>
        </div>
        <div style="--clr: #ffffff; --h: 94px" id="sec" class="hand">
          <i></i>
        </div>

        <span style="--i: 1"><b>1</b></span>
        <span style="--i: 2"><b>2</b></span>
        <span style="--i: 3"><b>3</b></span>
        <span style="--i: 4"><b>4</b></span>
        <span style="--i: 5"><b>5</b></span>
        <span style="--i: 6"><b>6</b></span>
        <span style="--i: 7"><b>7</b></span>
        <span style="--i: 8"><b>8</b></span>
        <span style="--i: 9"><b>9</b></span>
        <span style="--i: 10"><b>10</b></span>
        <span style="--i: 11"><b>11</b></span>
        <span style="--i: 12"><b>12</b></span>
      </div>
    </div>

    <script src="script.js"></script>
  </body>
</html>



CSS CODE

*{
    margin: 0;
    padding: 0;
    box-sizing: border-box;
    font-family: sans-serif;
    color: #ffffff;
}

body{
    display: flex;
    justify-content: center;
    align-items: center;
    min-height: 100vh;
    background-color: #212121;
}

.container{
    position: relative;
}

.clock{
    width: 300px;
    height: 300px;
    border-radius: 50%;
    background-color: rgba(255, 255, 255, 0.1);
    border: 2px solid rgba(255, 255, 255, 0.25);
    box-shadow: 0px 0px 30px rgba(0, 0, 0, 0.9);
    display: flex;
    justify-content: center;
    align-items: center;
}

.clock span{
    position: absolute;
    transform: rotate(calc(30deg * var(--i)));
    inset: 12px;
    text-align: center;
}

.clock span b{
    transform: rotate(calc(-30deg * var(--i)));
    display: inline-block;
    font-size: 20px;
}

.clock::before{
    content: '';
    position: absolute;
    width: 8px;
    height: 8px;
    border-radius: 50%;
    background-color: #fff;
    z-index: 2;
}

.hand{
    position: absolute;
    display: flex;
    justify-content: center;
    align-items: flex-end;
}
.hand i{
    position: absolute;
    background-color: var(--clr);
    width: 4px;
    height: var(--h);
    border-radius: 8px;
}



JS CODE

let hr = document.getElementById('hour');
let min = document.getElementById('min');
let sec = document.getElementById('sec');

function displayTime(){
    let date = new Date();

    // Getting hour, mins, secs from date
    let hh = date.getHours();
    let mm = date.getMinutes();
    let ss = date.getSeconds();

    let hRotation = 30*hh + mm/2;
    let mRotation = 6*mm;
    let sRotation = 6*ss;

    hr.style.transform = `rotate(${hRotation}deg)`;
    min.style.transform = `rotate(${mRotation}deg)`;
    sec.style.transform = `rotate(${sRotation}deg)`;

}

setInterval(displayTime, 1000);

To help you get started, we have made the complete source code available for you to download. Simply visit SOURCE CODE  to access the code and use it as a reference for your future projects.


In conclusion, creating an analog clock using HTML, CSS, and JavaScript is an exciting way to enhance the visual appeal of your web page. By following this step-by-step guide, you can now confidently implement an analog clock and customize it to suit your design preferences. Happy coding!
